Rehabilitation of concrete roads to reduce ongoing maintenance

The Problem


It used to be common practice to overlay concrete estate roads with Microasphalt and other bituminous surfacing products.

Years later, this solution has left authorities with two problems:


  • The aesthetics of the now patchy finish, with open joints, and the regular occurrence of worn-off areas of blacktop, exposing concrete patches.


  • The high cost of the ongoing maintenance liability in keeping the highway free of potholes, trip hazards, and maintaining a safe running surface in a residential environment.

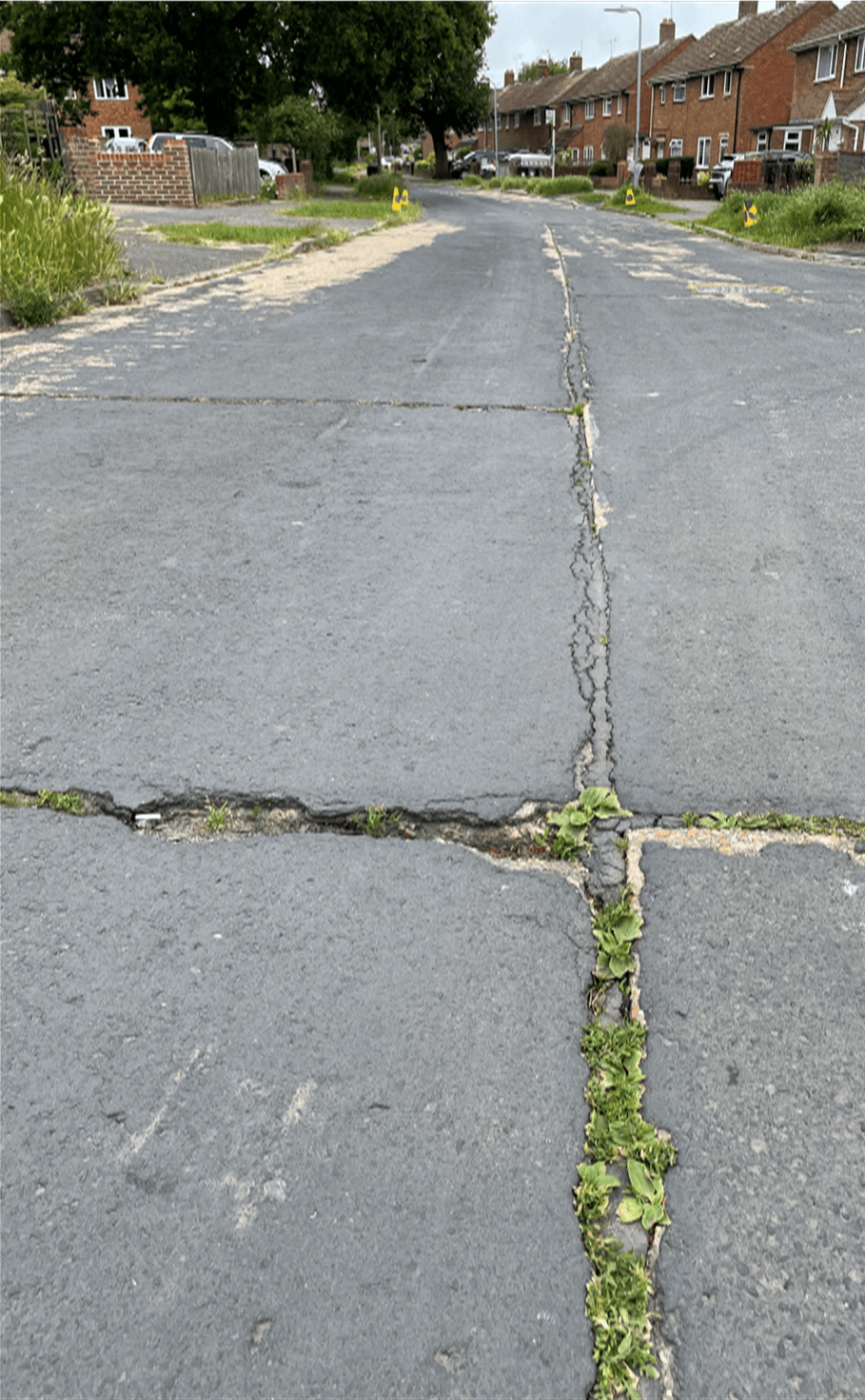

weed growth in road joints
Micro asphalt stripping off a concrete road ready for concrete rehabilitation by Rhino Asphalt Solutions
Micro asphalt stripping off a concrete road ready for concrete rehabilitation by Rhino Asphalt Solutions

The Solution


To reduce the ongoing maintenance liability, Local Authorities are re-exposing the old concrete surface with the addition of some tried and tested repair methods.


Due to the invention of micro planing heads on Wirtgen road planers, old smooth concrete can be retextured with a fine milling drum to give a skid resistant finish.


As a result, concrete rehabilitation is now an effective way of treating these sites to reduce the ongoing maintenance costs of looking after these roads.


Repairing and concrete roads with concrete rehabilitation by Rhino Asphalt Solutions

Smaller planers are then used to pick up the detail around kerb lines and bell mouths.


Repairing and concrete roads with concrete rehabilitation by Rhino Asphalt Solutions
Kerb edges are sealed up to stop the ingress of water and to direct run-off back into the gullies.
Repairing and concrete roads with concrete rehabilitation by Rhino Asphalt Solutions
Highway ironwork is reset using our Ironmasterâ„¢ system so that they are flush with the new levels.
Repairing and concrete roads with concrete rehabilitation by Rhino Asphalt Solutions

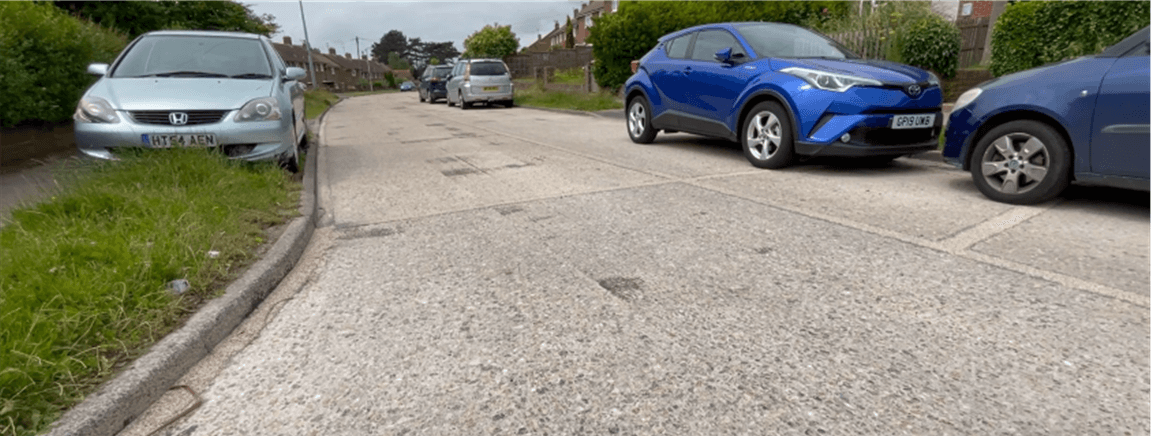

The finished, textured surface which has been returned to its original concrete finish with repairs complete.
Repairing and concrete roads with concrete rehabilitation by Rhino Asphalt Solutions

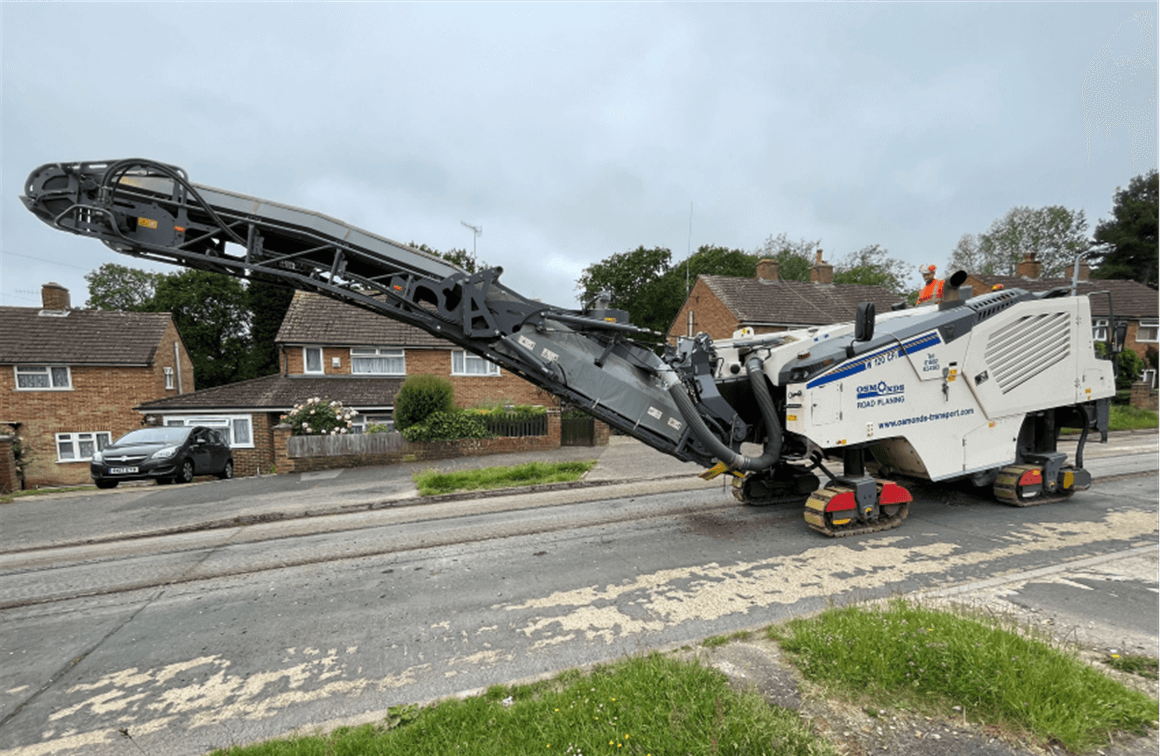

Firstly the remaining asphalt is planed off from the road surface and then a fine milling planing drum cuts a textured surface into the concrete.


Repairing and concrete roads with concrete rehabilitation by Rhino Asphalt Solutions

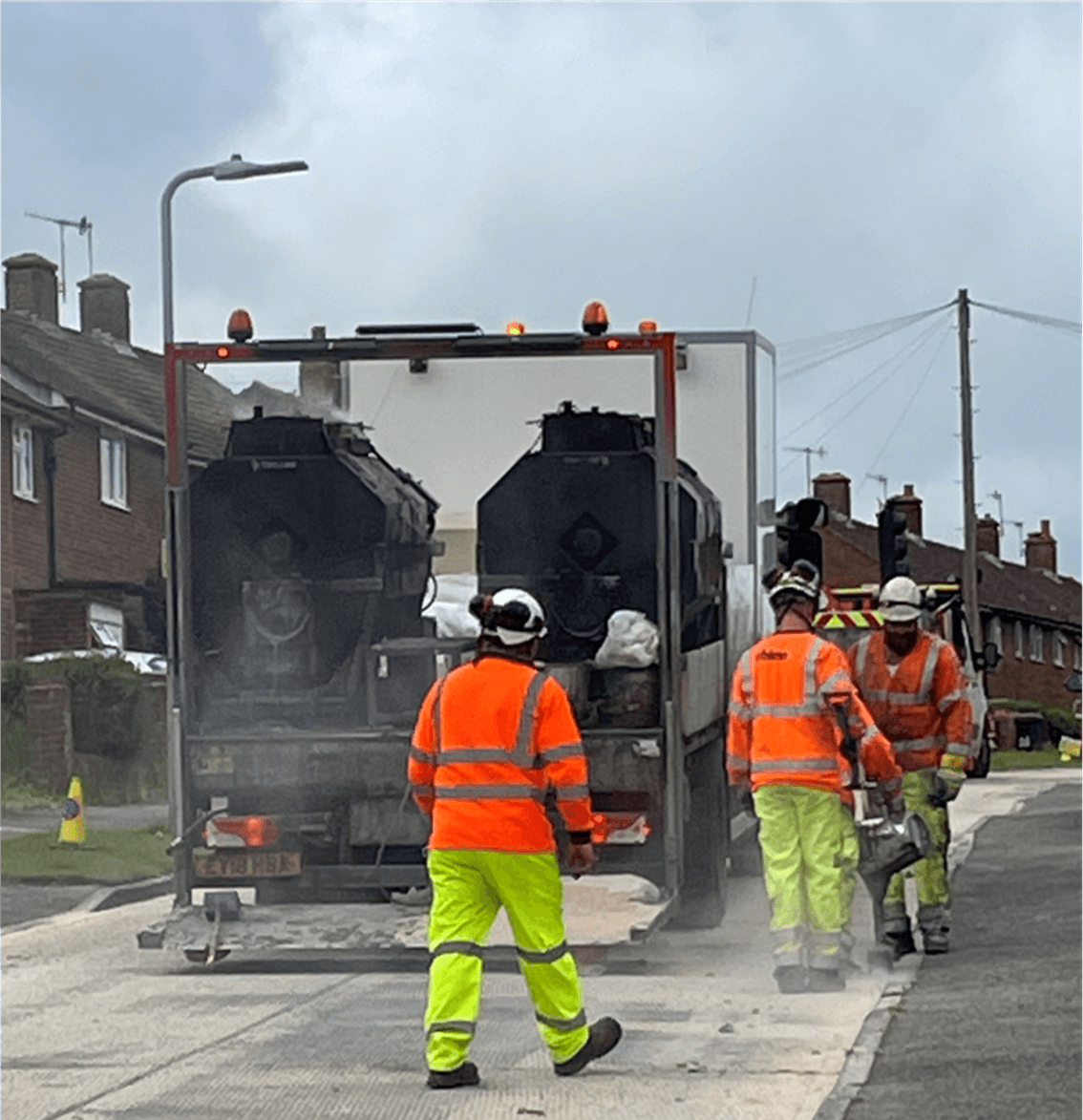

Next comes treatment of the defects uncovered in the concrete surface using BBA HAPAS approved repair products and techniques.
Repairing and concrete roads with concrete rehabilitation by Rhino Asphalt Solutions
Cracks, transverse joints and longitudinal joints are treated with a recessed crack repair system giving a flexible, long-lasting repair sealing the rest of the surface against water.
Repairing and concrete roads with concrete rehabilitation by Rhino Asphalt Solutions

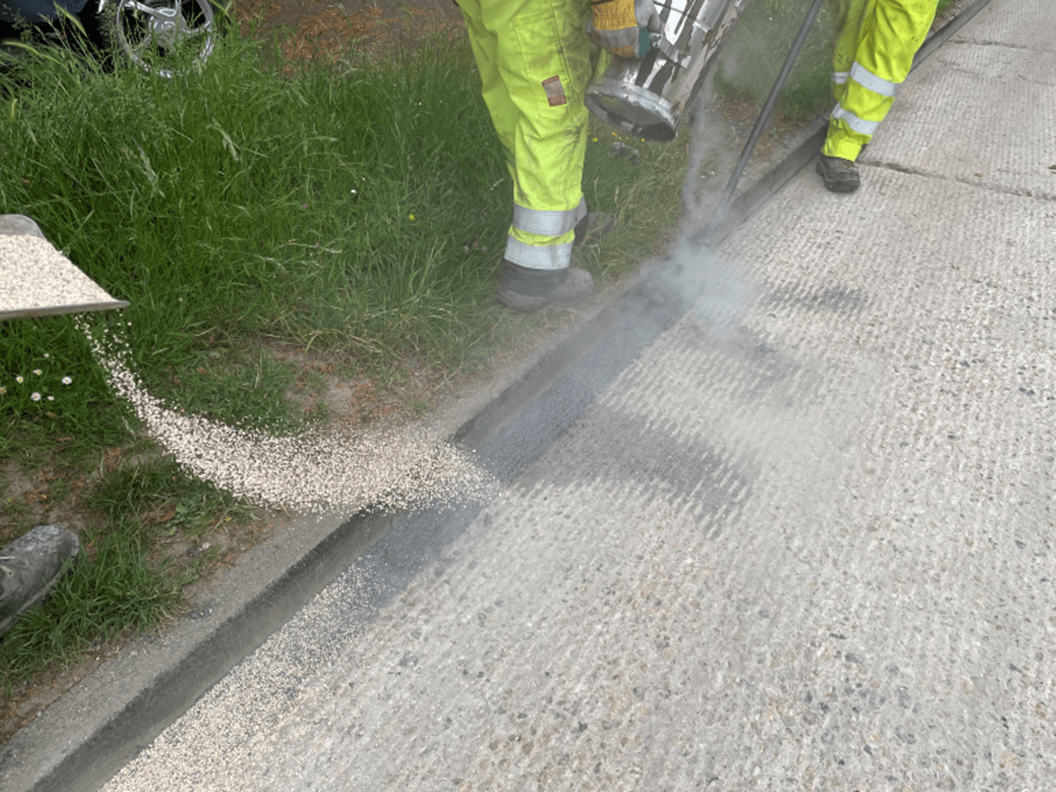

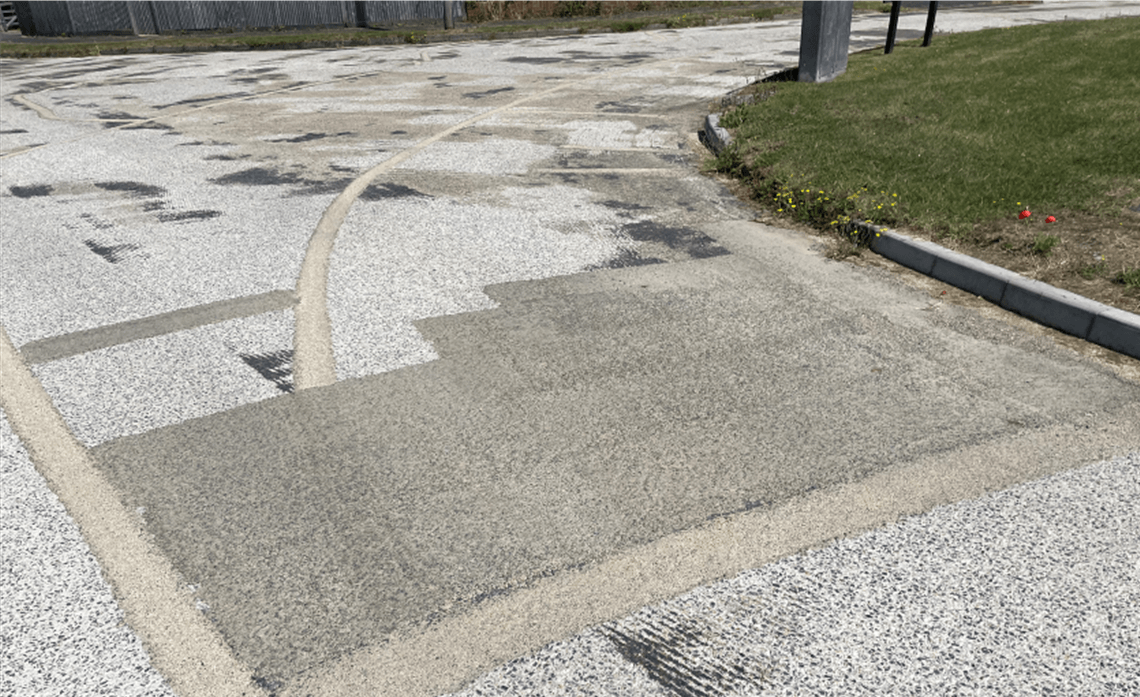

Finally, blacktop patches and asphalt bay replacements are treated with a concrete coloured surface screed to compliment the surroundings.

Repairing and concrete roads with concrete rehabilitation by Rhino Asphalt Solutions
The finished job.
Repairing and concrete roads with concrete rehabilitation by Rhino Asphalt Solutions

The finished job.
